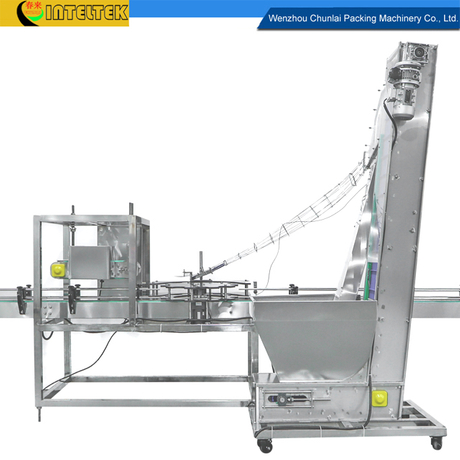

Linear design makes it suitable for various caps & bottles with good adaptability, widely used for pressing jar cap, plastic bottle caps, can caps, in industries like food, beverages, cosmetics, chemicals, etc. It integrates automatic bottle feeding, automatic cap sorting, automatic cap feeding, automatic capping, and automatic bottle out...
1. Designed with auto cap-feeding, the top belt does online continuous cap pressing, meeting various high-speed cap pressing production requirement.
2. Linear bottle conveying & humanized design makes the clamping belts & capping height easily adjusted by hand wheels, and different bottle changeover can be done well in several mins without tools, easy to operate & maintenance.
3. Mainly made of SUS304 including frame & body; continuous working & highly automation ensuring highly efficiency.A
Production Capacity | 20-80 bottles/minute | |
Bottle diameter | 40-110mm or customized | |
| Bottle height | 80-350mm or customized | |
Power | 220V, 50Hz/60Hz | |
Power | 1.5 Kw | |
Capping Machine Dimension | 2400mm×700mm×1600mm | |
| Capping Machine Weight | 290KG | |
Loading Machine Dimension | 200mm×700mm×1850mm | |
Loading Machine Weight | 230Kg | |
Safety protection: it is optional function, it make up by plexi glass plates, aluminium and stainless steel, has safety switches which protect the operator.
