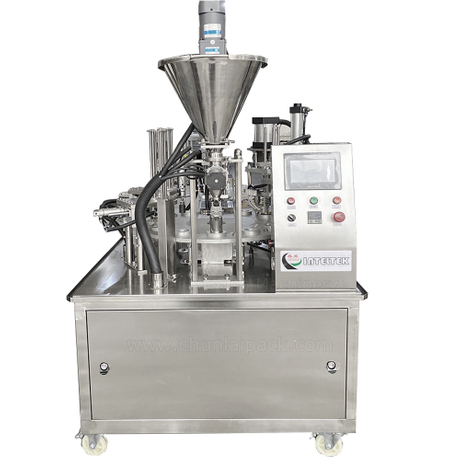

Chunlai's KIS-900 rotary type K-cup coffee filling and sealing machine offers a great value with filling speeds from 800-2000 cups/hour and filling capabilities from 5-15g(different from this can be customized). Rotary machines are a great choice for customers that have limited space or that don't require high production rates. This filling sealing machine is a great option for pilot programs, small businesses, business starters and market testing.
KIS-900 rotary type K-cup filling sealing machine can be customized for fill and seal different kinds of single cup coffee pods like K-cup, coffee capsule, Point, Upshot
Depending on the output required, the KIS-900 rotary cup filling and sealing machine is designed for one cup or two cups per time. The filling unit is auger filler suitable for various of powder products: coffee, tea, hot chocolate, cocoa, milk powder etc.
Machine basic function include cup de-nesting, filling, heat sealing, automatic cup discharge
Empty cup de-nesting system: it suitable for stackable cups. The machine come with stack channel for manual loading or with automatic cups feeding system.
Stepper motor driving auger filling system: accurate filling and easy to clean. With tamping coffee powder function.
Aluminum foil lids placing system: it make up by 180 rotate vacuum sucker and lids magazine, it can place the lid on the mold fast and accurately.
Sealing system: the sealing temperature can be 0-300 degree adjustment. Independent temperature controller for each sealing head
Automatic discharge system: it made up by cup lifting and pushing system, fast and stable.
Automation control system: it controlled by Xinjie PLC
Pneumatic system: it controlled with AirTac cylinder
Variable speed adjustment via speed controller arrange with inverter
Operation panel: Traditional Switches and Buttons for simple operation
cup denester
filter denester
auger dosing
foil place
sealing
cup feed out
Model | KIS-900 | KIS-900-2 |
Production Capacity | 800-1000 cups/hour | 1600-2000 cups/hour |
Filling Range | 50-300ml or customized | |
Power | Single phase 220V, 3 phase 220V 3 phase 380V/400V/415V 50Hz/60Hz | |
Power | 1 Kw | 1.5Kw |
Air consumption | 0.6 mз/min | 0.8 mз/min |
Dimension | 1000mm×1000mm×1650mm | 1150mm×1150mm×1650mm |
Weight | 300Kg | 350Kg |
Machine Frame: Stainless Steel
Product contact part: 304 stainless steel
PLC: Mitsubishi
Cylinder: AirTac
Solenoid valve: Mindmand
Switch: IDEC
Operation panel: Touch Screen
Servo motor driving
Empty cup dispensing function: according to different cups, some can be designed with vacuum sucker which can guide the cup enter into mold accurately. For not stable capsules, there’s other solution
Empty cup detecting function: no cup no filling or no cup machine stops
Insert Filter Basket
Filling liquid system (various flavor)
Filling: cup lifting function
Servo drive auger filler can be customized
Clean powder off from the top rim of cups is optional
Nitrogen flushing function: Nitrogen helps prolong product shelf life.
Roll Film Storage Device
Blank Film Fixer: to calculate the film length of cup for saving the film cost
Eye Mark Auto Correction: Collocating with a photocell sensor of film pattern mark
Color ribbon date printer for roll film
Safety protection: it is optional function, it make up by plexi glass plates, aluminium and stainless steel, has safety switches which protect the operator.
Laminar flow-HEPA filter unit
Out-feed conveyor
Counting for sealed cups’ quantity
