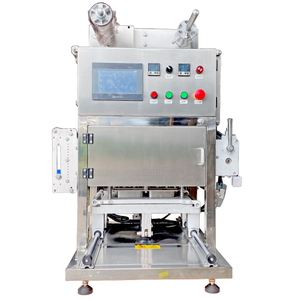

KIS-1 Desktop Pneumatic Tray Sealing Machine

KIS-1 automatic tray sealing machine is a tabletop model with die cut features. Very compact, it is a drawer style food tray sealer that seals and cuts the film around the food tray with a pneumatic piston. As you push in the drawer holding your food-filled trays, the sealing film is automatically drawn over the trays and the machine does the rest of the sealing for you.


Availability:
Quantity:
  • KIS-1

  • Chunlai

KIS-1 automatic tray sealing machine is a tabletop model with die cut features. Very compact, it is a drawer style food tray sealer that seals and cuts the film around the food tray with a pneumatic piston. As you push in the drawer holding your food-filled trays, the sealing film is automatically drawn over the trays and the machine does the rest of the sealing for you.



The temperature are regulated to allow for the sealing of different types of film and trays. . It can seal trays made of PP, PE, CPET, APET and Aluminum.




APPLICATION

1. For Round Cup/Bowl sealing: Water, Hummus, Juice, Jelly, Yogurt, Pudding...

2. For Square Tray sealing : Lunch box, Tofu, Fresh frozen food, Sea food, sandwich, agricultural processed product...

3. Or any others: Cosmetics and Pharmaceutical product .Many kinds of packaging product by Plastic or Paper container.





Main Function:

machine slide mould automatically

put tray on mould manually

machine slide mould automatically

pneumatic sealing

machine slide mould automatically

take tray outside mould manually







Production   Capacity

300-400   times/hour

Voltage

220V   50Hz

Power

2 Kw

Air   consumption

0.4 m3/min

Dimension

900mmX800mmX1850mm

Weight

100 kg


Machine Frame: Stainless Steel

Bottom Molds: Aluminum Alloy

PLC: Mitsubishi

Cylinder: AirTac

Solenoid valve: Mindmand

Switch: IDEC



Gas flushing is optional

tray seal

rectangular tray seal

tray seal sample

square tray seal

bowl seal

round bowl seal
